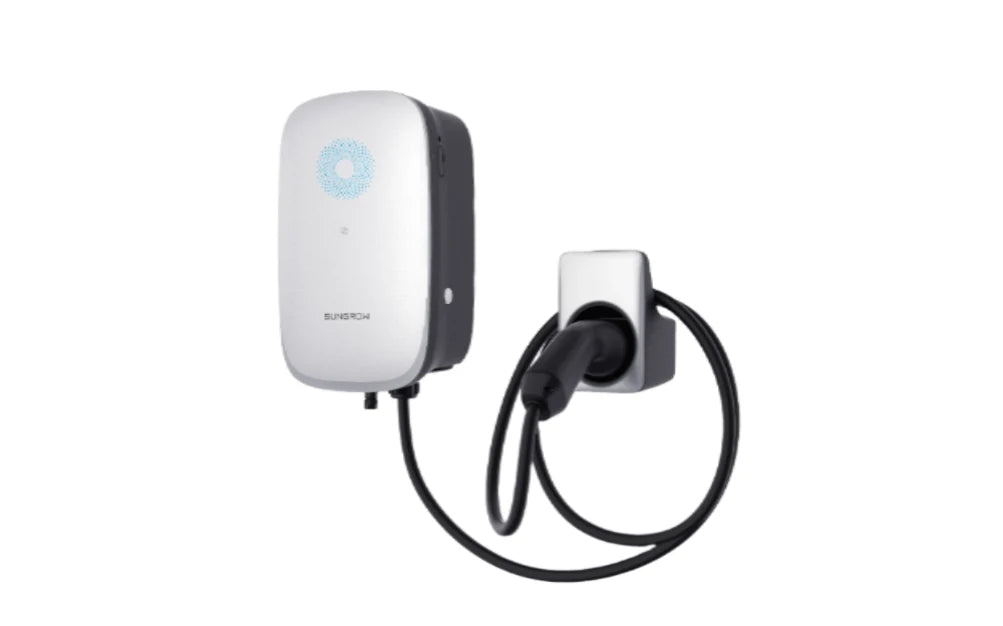

Sungrow EV Charger – 7kW, 11kW, 22kW & 30kW | Type 2 & DC Charging

Sungrow EV Chargers provide reliable and intelligent charging solutions for residential, commercial and destination-charging applications. The range includes AC charging options from 7kW to 22kW and a 30kW DC fast-charging option, with selected models offering smart load management, connectivity and Sungrow energy-management integration.

Key Features

• Genuine Sungrow EV charging technology
• AC charging options: 7kW, 11kW and 22kW
• 30kW DC fast-charging option
• Type 2 connector for AC models
• CCS2 connector for IDC30E
• 7m charging cable for AC22E-01
• 5m charging cable for IDC30E
• IP65 protection rating
• IK10 impact protection on applicable models
• Smart load management on supported models
• iHomeManager compatibility on AC22E-01
• OCPP support on compatible models
• Wi-Fi, Ethernet, RS485 and 4G communication options depending on model
• Suitable for residential and commercial applications
• Wall or pole mounting options depending on model



  Technical Specifications

  • Brand: Sungrow
  • Models: AC22E-01 / IDC30E
  • Charger Type: AC & DC EV Charger
  • Charging Power: 7kW / 11kW / 22kW AC & 30kW DC
  • AC Connector: Type 2
  • DC Connector: CCS2
  • Cable Length: 7m (AC22E-01) / 5m (IDC30E)
  • AC Maximum Current: Up to 32A, 3-phase
  • DC Output Voltage: 200–1000V DC
  • DC Maximum Output Current: Up to 80A
  • DC Maximum Efficiency: Up to 96.5%
  • Protection Rating: IP65
  • Impact Protection: Up to IK10
  • Communication: Wi-Fi / Ethernet / RS485 / 4G, depending on model
  • Charging Protocol: OCPP 1.6J; IDC30E is OCPP 2.0.1 ready
  • Operating Temperature: -30°C to 50°C (AC22E-01) / -35°C to 55°C (IDC30E)
  • Installation: Wall / pole mounting
  • Smart Features: Smart load management and iHomeManager compatibility on supported models




  Dimensions & Weight

  • AC22E-01 Dimensions: 346 × 214 × 125mm
  • IDC30E Dimensions: 500 × 800 × 288mm
