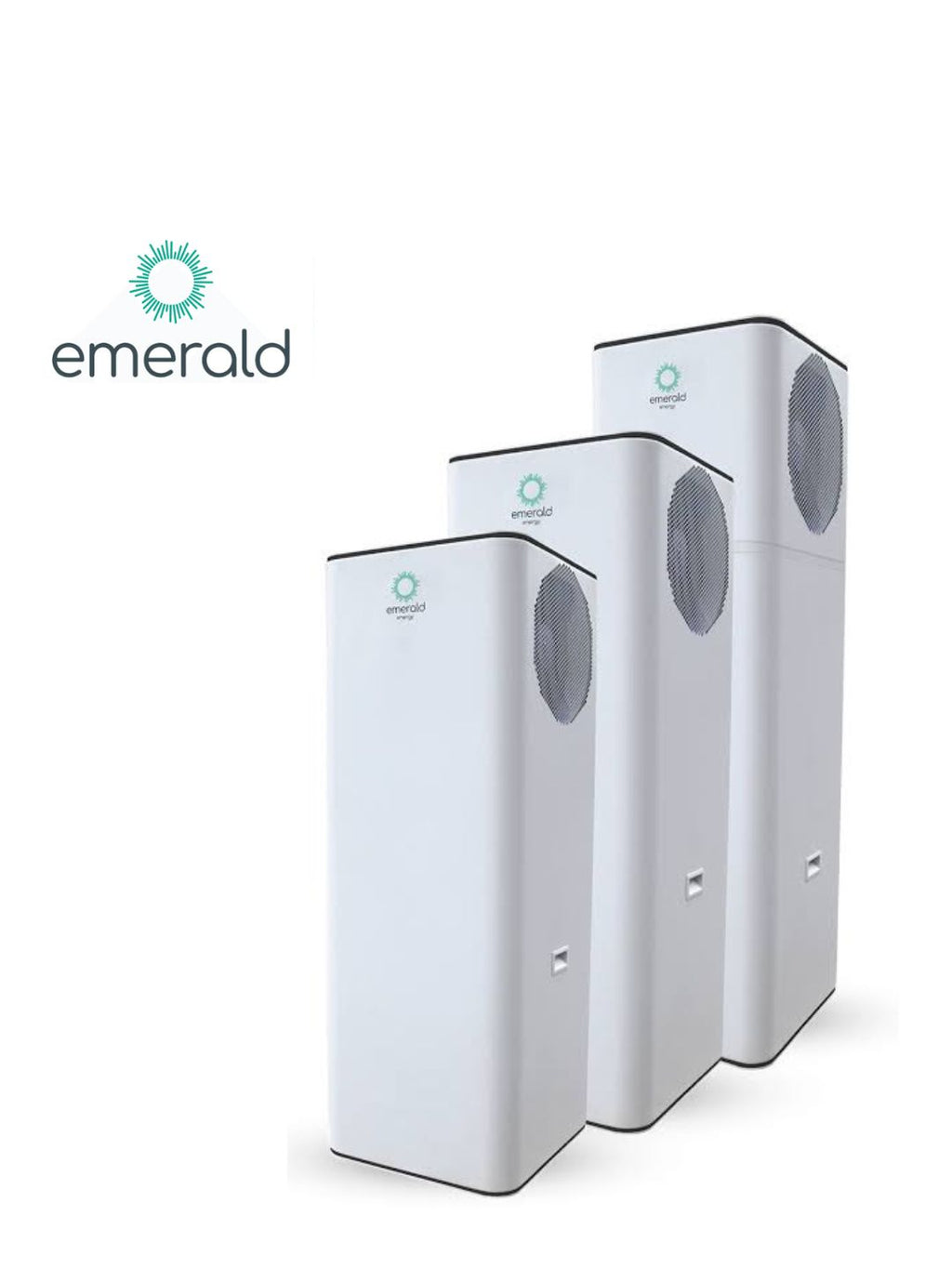

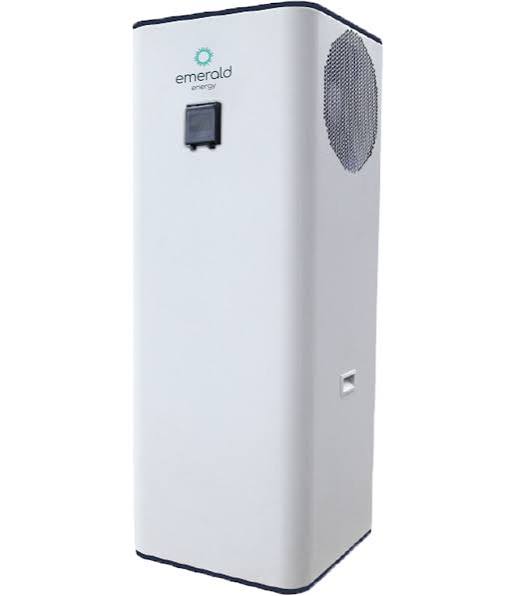

Emerald Heat Pumps – Pro & Select All-In-One Series

Upgrade your hot water system with the Emerald Heat Pumps Pro & Select All-In-One Series. Available in 220L, 270L and 320L capacities, these integrated hot water heat pumps combine efficient heat pump technology with practical storage in a compact all-in-one design.

The Emerald Pro range offers Standard, Silent and Booster modes, with selected E models featuring a built-in 1.6kW backup electric heating element. The Emerald Select range offers Standard and Boost operation, with E models featuring a built-in 1kW electric heating element.

Using R290 natural refrigerant, Emerald heat pumps are designed for efficient hot water heating and Australian conditions. Emerald App compatibility allows smart monitoring and control, while the integrated design provides a practical solution for residential hot water applications.

Technical Specifications

• Brand: Emerald
• Product Type: All-In-One Hot Water Heat Pump System
• Heat Pump Technology: Air Source Heat Pump
• Refrigerant: R290
• Available Capacities: 220L, 270L & 320L
• Heating Capacity: 2.8 kW
• Power Supply: 220–240V / 50Hz / 1 Phase
• Backup Electric Element: 1.6 kW on Pro E models
• Backup Electric Element: 1 kW on Select E models
• Operating Modes – Pro: Standard / Silent / Booster / E-Heater
• Operating Modes – Select: Standard / Boost / E-Heater
• Tank Material: Enamel
• Tank Diameter: 540 mm
• Tank Wall Thickness: 2.5 mm
• Tank Dome Thickness: 3.0 mm
• Insulation: Polyurethane
• Compressor: Rotary
• Fan: Axial
• Expansion Valve: Electronic Expansion Valve (EEV)
• Defrost System: 4-Way Valve
• Maximum Heat Pump Outlet Temperature: 70°C
• TPR Valve: 850 kPa
• App: Emerald App
• Recharge Rate: Up to 58 L/h
• Sound Level: Approximately 49–50 dB(A)

Dimensions:

• Pro 220L : 600 × 600 × 1598 mm
• Pro 270L : 600 × 600 × 1826 mm
• Pro 320L : 600 × 600 × 2105 mm
• Select 220L : 600 × 600 × 1750 mm
• Select 270L : 600 × 600 × 1970 mm
• Select 320L : 600 × 600 × 2195 mm
