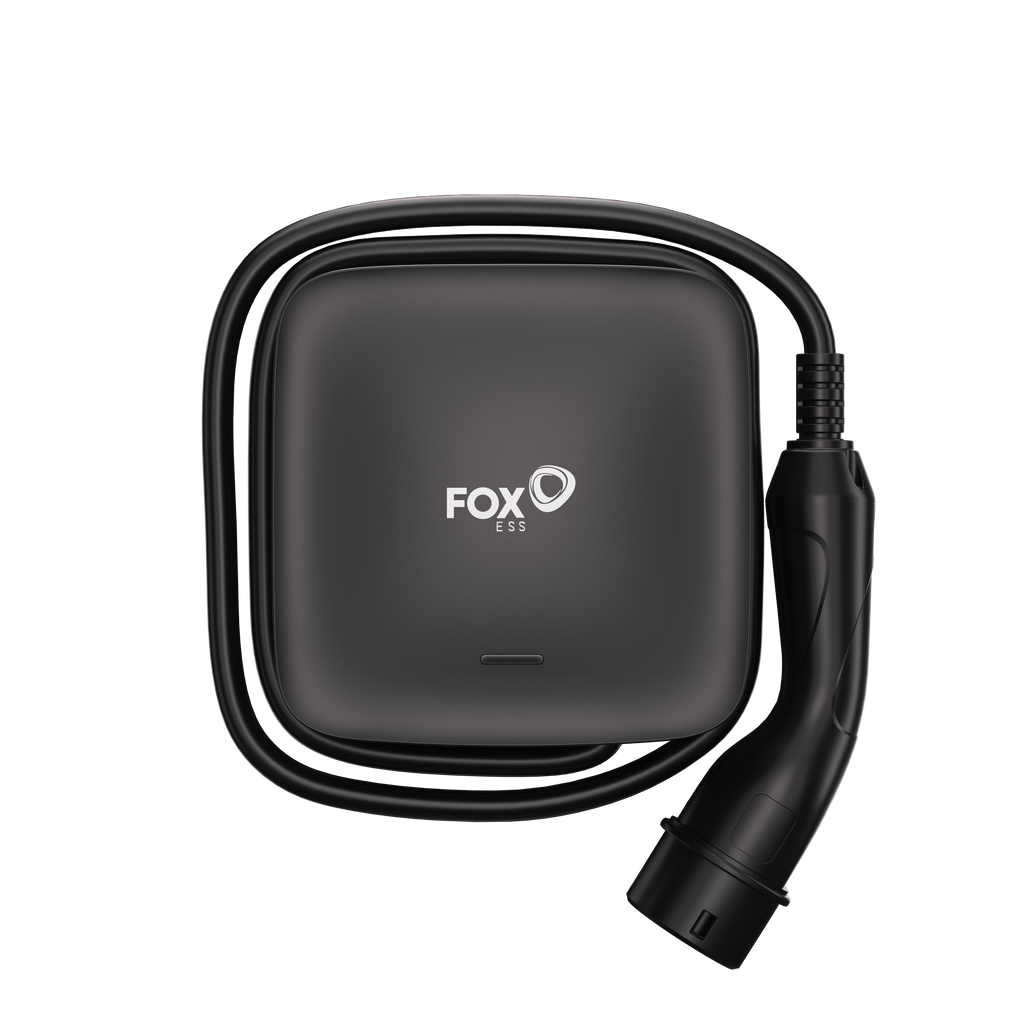

FOX ESS EV Charger A & L Series ev Chargers; 7.3/ 11/ 22 kW 1 Phase & 3 Phase

The FOXESS A & L Series EV Chargers provide a flexible and reliable AC charging solution for residential and commercial EV charging. Available in 7.3kW single-phase, 11kW three-phase and 22kW three-phase configurations, the range offers smart charging with Wi-Fi, Bluetooth, RFID and OCPP connectivity. With Type 2 charging, robust protection and convenient smart control, the FOXESS A & L Series is designed for efficient everyday EV charging.

    Key Features

• 7.3kW, 11kW and 22kW AC charging options
• Single-phase and three-phase variants available
• Type 2 charging connection
• Wi-Fi and Bluetooth connectivity
• RFID authentication
• Smart app control
• OCPP support for smart charging management
• Wall or floor/post mounting options
• IP55 protection
• IK08 impact protection
• Residual current protection
• Suitable for residential and commercial EV charging
• Compact and modern design

Technical Specifications

• Brand: FOXESS
• Product Series: A Series / L Series
• Charging Type: AC
• Connector: Type 2
• Power Options: 7.3kW / 11kW / 22kW
• 7.3kW Variant: Single-Phase, 230V, up to 32A
• 11kW Variant: Three-Phase, 400V, up to 16A
• 22kW Variant: Three-Phase, 400V, up to 32A
• Frequency: 50/60Hz
• Connectivity: Wi-Fi, Bluetooth
• RFID: Supported
• OCPP: Supported
• LAN: Available on L Series
• Installation: Wall-Mount / Post or Floor-Mount
• Protection Rating: IP55
• Impact Protection: IK08

Dimensions

• A Series 7.3kW:  | Dimensions: 320 × 190 × 130 mm
• A Series 11kW:   | Dimensions: 320 × 190 × 130 mm

• A Series 22kW:   |  Dimensions: 320 × 190 × 130 mm
•  L Series 7.3kW:  | Dimensions: 197 × 196 × 105 mm
• L Series 11kW:    | Dimensions: 197 × 196 × 105 mm
