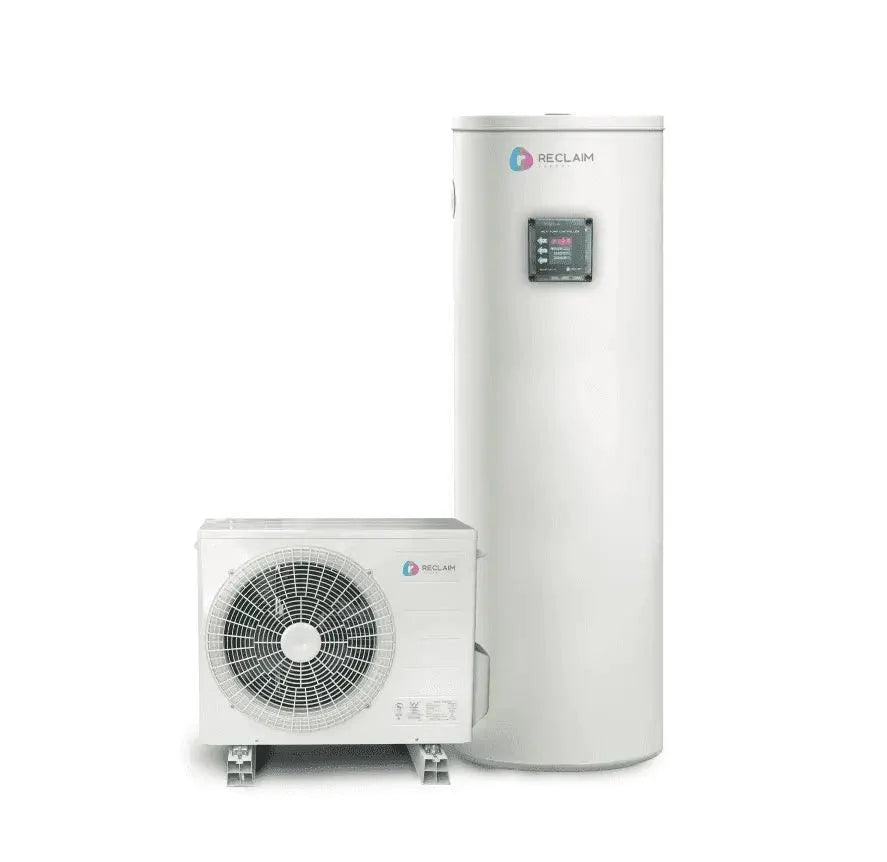

Reclaim CO2 Heat Pump – 315L & 400L Glass Lined Series

Reclaim Energy CO2 Heat Pump systems are designed to provide efficient and reliable hot water heating using advanced CO2 (R744) heat pump technology. Available with 315GL and 400GL glass-lined storage tanks, the system offers flexible hot water storage options for residential applications. The range also includes the Reclaim 15mm Quikie Kit for compatible installations.

Key Features

• CO2 (R744) natural refrigerant technology
• High-efficiency heat pump operation
• 315L and 400L glass-lined tank options
• Reliable hot water heating performance
• Outdoor heat pump unit
• Smart controller included with compatible systems
• Designed for Australian conditions
• 15mm Quikie Kit available for compatible installations
• Suitable for residential hot water applications
• Eligible models may qualify for applicable Australian energy incentives

Technical Specifications

• Brand: Reclaim Energy
• Product Type: CO2 Heat Pump Hot Water System
• Heat Pump Technology: Air Source Heat Pump
• Refrigerant: CO2 (R744)
• Heat Pump Model: EHPE-4540P
• Heat Output: Up to 4.8 kW
• Hot Water Delivery Temperature: 63°C
• Operating Ambient Temperature: -10°C to 43°C
• Power Supply: 240V / 50Hz, Single Phase
• Heat Pump Unit Weight: 48 kg
• Noise Level: 37 dB
• Protection Rating: IPX4
• Heat Pump Dimensions: 675 × 825 × 300 mm (H × W × D)
• 315GL Tank Capacity: 323 L physical volume
• 400GL Tank Capacity: 420 L physical volume
• Tank Material: Glass Lined (GL)
• Controller: WFI/Smart Controller
• 15mm Quikie Kit Model: HPS-RC-QKIT-15

Dimensions

• Reclaim CO2 Heat Pump – 315GL: 617 mm × 1765 mm
• Reclaim CO2 Heat Pump – 400GL: 701 mm × 1699 mm
