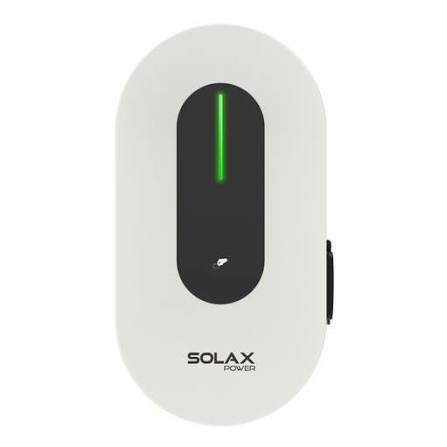

Solax Hyper EV Charger – 4.6kW, 7kW, 11kW & 22kW | Single & Three Phase

The SolaX Hyper EV Charger is a smart and versatile charging solution available in 4.6kW, 7kW, 11kW and 22kW configurations. With single-phase and three-phase options, Type 2 plug connectivity and smart communication features, it is designed for convenient and reliable EV charging in residential, destination and public environments.

Key Features

• 4.6kW, 7kW, 11kW and 22kW charging options
• Single-phase and three-phase models
• Type 2 plug connection
• WiFi, Ethernet and Bluetooth connectivity
• Optional 4G connectivity
• App and web remote control
• RFID, Plug & Charge and app authentication
• Smart dynamic load balancing
• OCPP 1.6J, Modbus TCP/RTU and Cloud API support
• IP65 protection for plug versions
• Indoor and outdoor installation
• Built-in multiple safety protections


  Technical Specifications:

  • Brand: SolaX
  • Series: Hyper EV Charger
  • Models: X1-HAC-4P / X1-HAC-7P / X3-HAC-11P / X3-HAC-22P
  • Charging Power: 4.6kW / 7.2kW / 11kW / 22kW
  • Phase: Single Phase / Three Phase
  • Input Voltage: 230V / 400V
  • Output Voltage: 230V / 400V
  • Output Current: 20A / 32A / 16A / 32A
  • Charging Outlet: Type 2 Plug
  • Cable Type: Plug Version
  • Connectivity: WiFi / Ethernet / Bluetooth / Optional 4G
  • Authentication: Plug & Charge / RFID / App
  • Communication: OCPP 1.6J / Modbus TCP / Modbus RTU / Cloud API
  • Protection: IP65
  • Installation: Wall Mounted / Optional Pedestal
  • Cooling: Natural Cooling
  • Application: Residential / Destination / Public



  Dimensions & Weight

  • X1-HAC-4P | 4.6kW | Single Phase | Plug | CT: 206 × 390 × 139 mm | 5 kg
  • X1-HAC-7P | 7kW | Single Phase | Plug | CT: 206 × 390 × 139 mm | 5 kg
  • X3-HAC-11P | 11kW | Three Phase | Plug | CT: 206 × 390 × 139 mm | 6.5 kg
  • X3-HAC-22P | 22kW | Three Phase | Plug | CT: 206 × 390 × 139 mm | 6.5 kg
