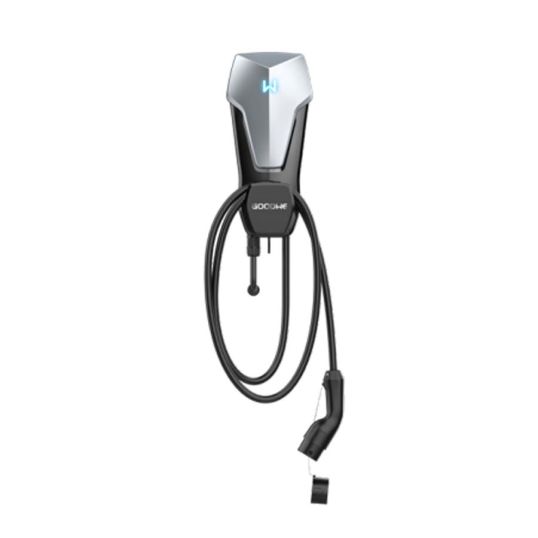

GoodWe ev Chargers | 2nd Gen | 7.3 kW/ 11 kW/ 22 kW | 1 Phase & 3 Phase

The GoodWe GW AC Charger Second Generation is a smart and reliable AC EV charging solution designed for residential, workplace and commercial applications. Available in 7kW single-phase, 11kW three-phase and 22kW three-phase configurations, it provides flexible charging options for different EV requirements. With smart connectivity, Type 2 charging and intelligent energy management, the charger can also work effectively with solar PV systems for convenient and efficient EV charging.

Key Features

• Available in 7kW, 11kW and 22kW charging options
• 7kW single-phase configuration
• 11kW and 22kW three-phase configurations
• Type 2 charging connection
• Smart charging management
• Wi-Fi connectivity
• Ethernet communication
• RFID access control
• App-based monitoring and control
• Dynamic Load Balancing support
• Solar PV surplus charging support
• OCPP communication
• IP65 protection
• Suitable for indoor and outdoor installation
• Wall-mounted design
• Built-in safety protection



  Technical Specifications

  • Brand: GoodWe
  • Product: GW AC Charger Second Generation
  • Charging Type: AC
  • Power Options: 7kW / 11kW / 22kW
  • Phase: Single-Phase / Three-Phase
  • Voltage: 230V AC / 400V AC depending on variant
  • Maximum Current: Up to 32A
  • Frequency: 50Hz
  • Charging Connector: Type 2
  • Connectivity: Wi-Fi / Ethernet
  • RFID: Supported
  • OCPP: Supported
  • Installation: Wall-Mounted
  • Protection Rating: IP65
  • Operating Temperature: -25°C to +50°C
  • Warranty: 3 Years




• Dimensions

  • 7kW Single-Phase: Dimensions: 450 × 300 × 125 mm
  • 11kW Three-Phase: Dimensions: 450 × 300 × 125 mm
  • 22kW Three-Phase: Dimensions: 450 × 300 × 125 mm
