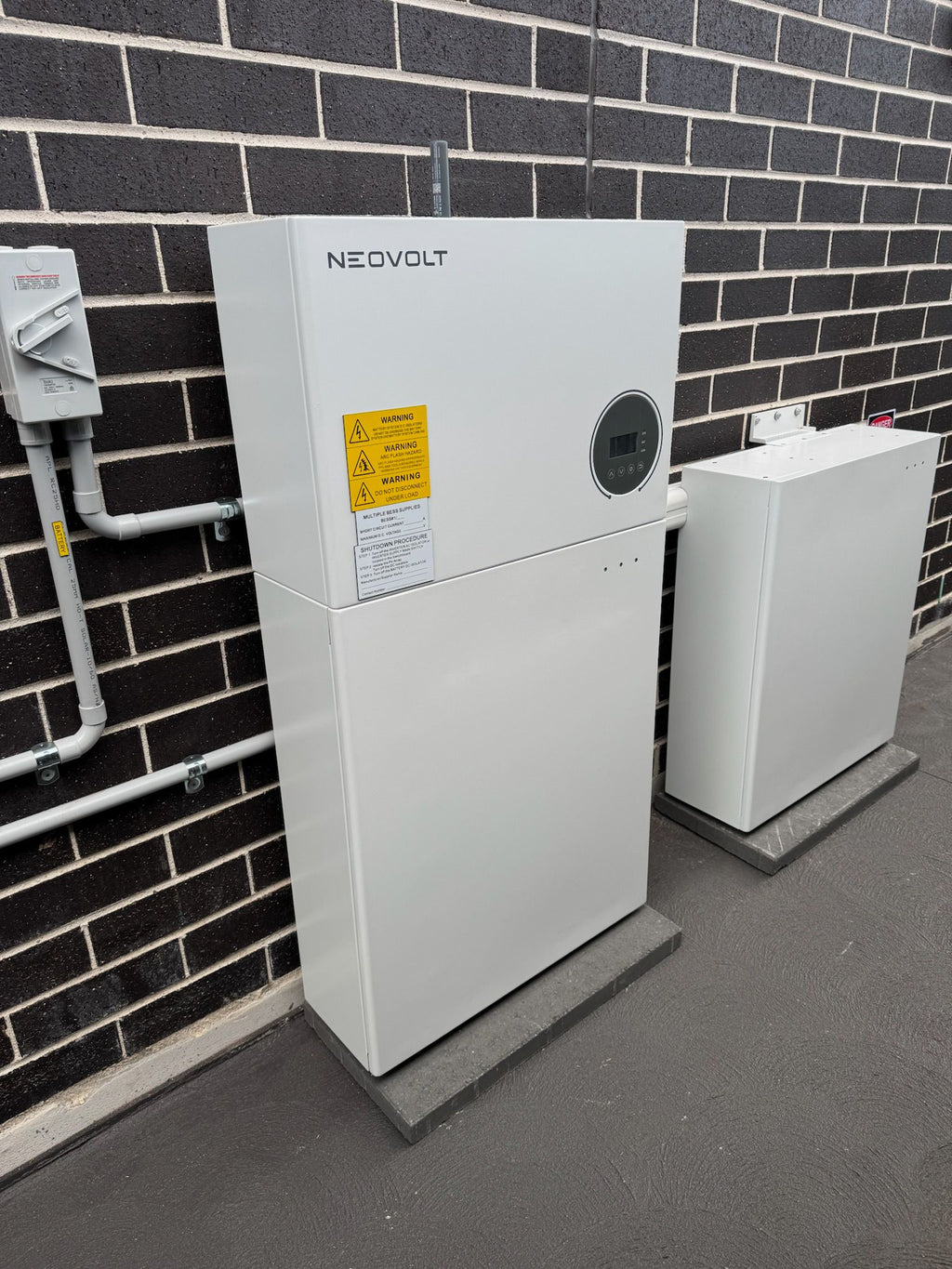

Neovolt Single-Phase Battery System – 9.6kWh

Power your home smarter with the Neovolt Single-Phase Battery System, designed for high performance, reliability, and intelligent energy management. Whether you're aiming to maximize solar energy usage, ensure seamless power backup, or participate in grid services, Neovolt is your trusted partner in home energy solutions.
🔋 Key Features

High Intelligence
• Built-in EMS (Energy Management System) for automatic energy optimization
• PV production forecasting
• Online monitoring, remote diagnostics & service
• Supports grid services: FCAS, VPP, and more
High Reliability

• UPS-level backup protection for critical loads
• Multi-layered battery protection (firmware and hardware)
• Advanced thermal management with multiple temperature sensors
• Expandable up to 6 inverters in parallel
High Performance

• 200% PV input and backup overload capacity
• 97.3% inverter efficiency; 97% battery efficiency
• Precise load monitoring (accuracy down to 10W)
Specifications

• Battery Model: BW-BAT-9.6P
• Capacity: 9.6kWh (9.1kWh usable)
• Battery Type: Lithium Iron Phosphate (LFP)
• Depth of Discharge: 95%
• Cycle Life: 10,000 cycles
• Dimensions: 590×730×205mm
• Weight: 86kg
• Battery Warranty: 12 Years
• Inverter Models: BW-INV-SPH3.6K / BW-INV-SPH5K / BW-INV-SPB5K
• Type: Single-phase hybrid and battery inverters
• Max Efficiency: 97.3%
• Transfer Time: <10ms
• Design: Transformerless
• Cooling: Natural cooling & low noise operation (<30dB)
• Inverter Warranty: 10 Years

Certifications & Safety
• Compliant with IEC/EN 62109, VDE-AR-N 4105, AS/NZS 4777.2:2020
• UN38.3 certified for safe transport
• IP65 rated for outdoor installation
