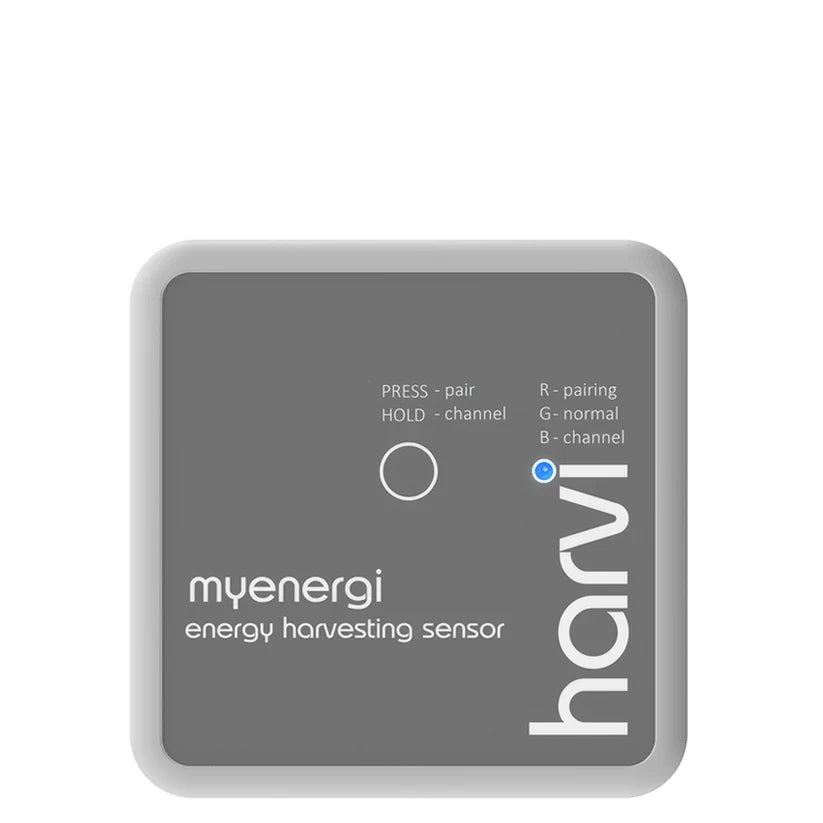

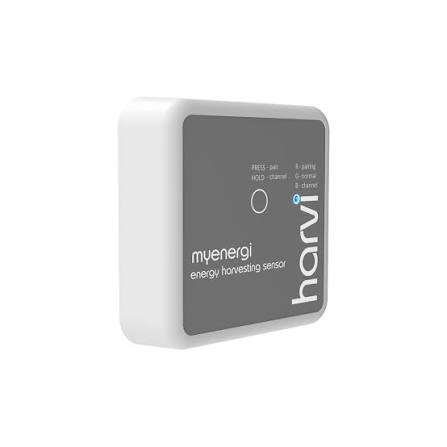

Harvi V2 (HARVI-65A3P)

Harvi V2 (HARVI-65A3P):

The myenergi harvi V2 is a wireless energy-harvesting sensor designed to monitor electrical energy flow without requiring batteries or a dedicated power supply. With up to three CT inputs, it can support single-phase or three-phase monitoring and wirelessly transmit energy data to compatible myenergi devices such as zappi and eddi.

Key Features:

• Wireless energy monitoring sensor

• Up to 3 CT inputs

• Supports single-phase and three-phase systems

• Energy harvesting technology — no batteries required

• Wireless RF communication

• Designed for use with myenergi zappi and eddi

• Measures energy import and export

• Suitable for solar, grid and energy-management applications

Benefits:

• Eliminates the need for hardwired CT connections

• Simplifies installation and reduces additional wiring

• Provides wireless energy monitoring

• Supports monitoring of multiple circuits

• Helps optimise renewable-energy consumption

• Compact design for convenient indoor installation

Technical Specifications:

• Brand: myenergi

• Model: harvi V2 / HARVI-65A3P

• Device Type: Wireless Energy-Harvesting Sensor

• CT Inputs: Up to 3

• System Compatibility: Single Phase or Three Phase

• Current Range: Up to 65A per measured circuit

• Measurement Accuracy: 2.0% typical

• Wireless Interface: 868 / 915MHz proprietary RF

• Power Supply: Energy harvesting from CT sensor; no battery or external power supply required

• Operating Temperature: -30°C to +50°C

• Installation: Indoor


• Dimensions (H × W × D): 98 × 98 × 38 mm
• Weight: 134 kg
• Warranty: 3 Years
