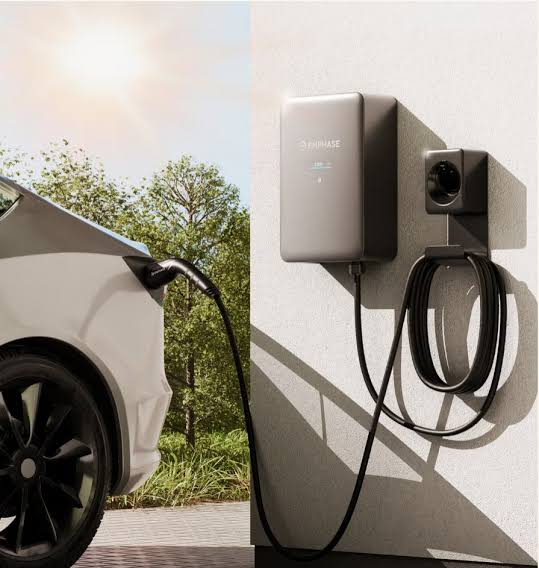

Enphase IQ EV Charger 2 Three Phase/Single Phase Tethered

• Enphase IQ EV Charger 2 is a smart three-phase/single-phase tethered AC EV charger designed for efficient home and commercial EV charging. It delivers up to 22kW on three-phase and 7.4kW on single-phase, with a built-in 7.5m Type 2 charging cable. It integrates with the Enphase Energy System and supports intelligent solar charging, smart scheduling and automatic phase switching to maximise the use of available solar energy.

Key Features

• Up to 22kW three-phase charging
• Up to 7.4kW single-phase charging
• 7.5m tethered Type 2 charging cable
• Automatic three-phase/single-phase switching
• Smart solar charging
• Excess PV energy utilisation
• Smart charging schedules
• Built-in MID meter
• Enphase App monitoring and control
• Wi-Fi, Ethernet, RS-485 and CAN connectivity
• Bluetooth / BLE 5.3
• OCPP 2.0.1 and API integration
• IP55 enclosure protection
• Suitable for indoor and outdoor installation

Technical Specifications

• Brand: Enphase
• Model: IQ EV Charger 2
• SKU: IQ-EVSE-EU-3032-0105-1300
• Product Type: Smart AC EV Charger
• Charging Type: Tethered
• Phase: Three Phase
• Maximum Power – Three Phase: Up to 22kW
• Nominal Voltage: 400V three-phase
• Rated Current: Up to 32A per phase
• Charging Cable: 7.5m Type 2
• Connector: Type 2
• Enclosure Rating: IP55 / IK10
• Operating Temperature: -40°C to +55°C
• Storage Temperature: -40°C to +80°C
• Humidity: 5–95% RH, condensing
• Altitude: <2,500m
• Wireless: 2.4/5GHz Wi-Fi 802.11ax
• Bluetooth: BT/BLE 5.3
• Wired Communication: Ethernet / RS-485 / CAN
• ISO 15118: Supported
• Installation: Indoor / Outdoor



           Warranty: 5 Years
           Dimensions (L × W × D): 370 × 250 × 118 mm
