Eastron | Single phase energy meter for Autel MaxiCharger AC | SDM230-Modbus V1

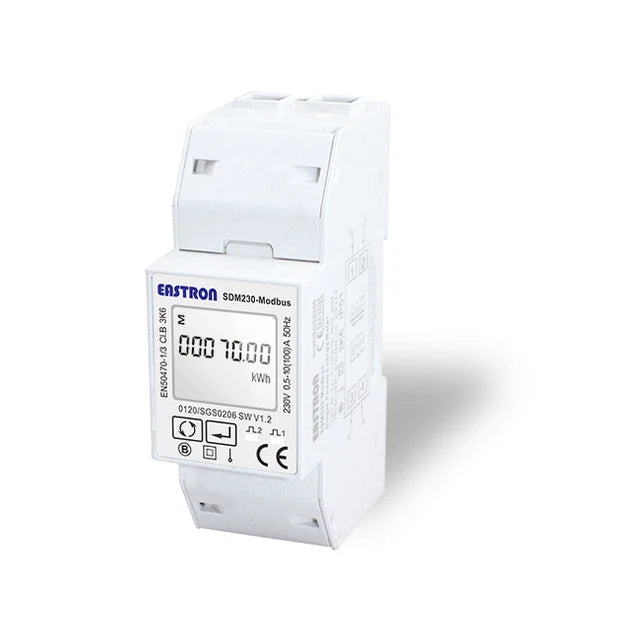

Eastron SDM230-Modbus V1 | Single-Phase Energy Meter for Autel MaxiCharger AC

The Eastron SDM230-Modbus V1 is a compact single-phase energy meter designed for accurate electrical monitoring and energy management in EV charging, solar PV and electrical installations. It is suitable for integration with compatible Autel MaxiCharger AC installations where single-phase energy monitoring is required.The SDM230-Modbus V1 supports up to 100A direct load measurement, eliminating the need for external current transformers for loads within its rated capacity. Its DIN-rail mounting and compact two-module design make it practical for installation inside electrical distribution boards and control panels.The meter provides direct measurement of electrical parameters including voltage, current, active power, reactive power, apparent power, power factor, frequency and energy consumption.

Key Features

• Single-phase 230V AC energy meter
• Designed for 1P2W electrical systems
• Up to 100A direct load measurement
• RS485 Modbus RTU communication
• Measures voltage, current, power and energy
• Measures power factor and frequency
• Compact 2-module / 36mm width design
• Suitable for EV charging and energy monitoring applications

Brand: Eastron

Model: SDM230-Modbus V1

Product Type: Single-Phase Energy Meter

Phase: Single Phase

Wiring: 1P2W

Rated Voltage: 230V AC

Voltage Range: 176–276V AC

Rated Current: 10A

Maximum Current: 100A

Width: 36mm

Application: EV Charging / Energy Monitoring / Solar PV

Compatible Charger: Autel MaxiCharger AC
