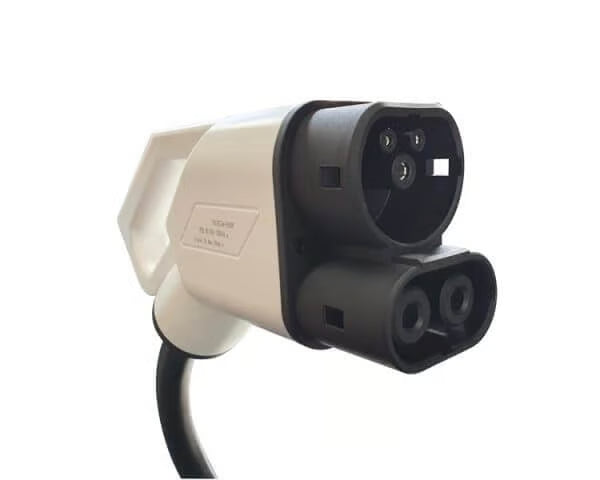

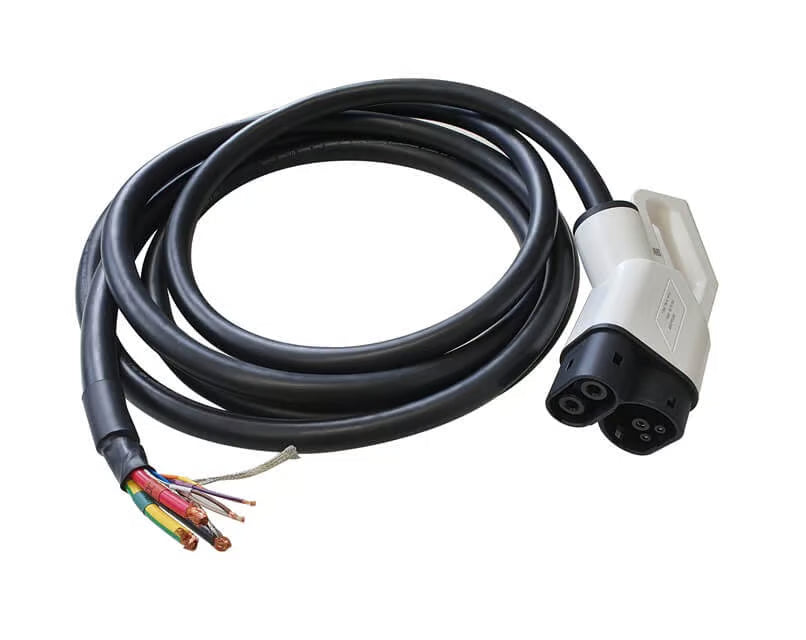

80 Amp CCS Type 2 Combined Charging System Plug w/ 6m Cable

The 80A CCS Type 2 Combined Charging System Plug with 6m Cable is a durable DC charging connector designed for electric and plug-in hybrid vehicles. With an 80A current rating, 1000V DC rating and 6m cable, it provides a reliable connection for DC EV charging applications and is built for demanding indoor and outdoor environments.

Key Features

• 80A DC charging capacity
• 1000V DC rated voltage
• 6m charging cable
• CCS Type 2 / Combo 2 connector
• Designed for DC fast-charging applications
• IEC 62196-3 compliant
• IP65 protection rating
• CE certified
• UL94 V-0 thermoplastic construction
• Operating temperature: -30°C to +50°C
• Suitable for EVs and PHEVs



  Technical Specifications

  • Connector Type: CCS Type 2 / Combo 2
  • Charging Type: DC
  • Rated Current: 80A
  • Rated Voltage: 1000V DC
  • Cable Length: 6m
  • Maximum Theoretical Power: Up to 80kW*
  • Standard: IEC 62196-3
  • Protection Rating: IP65
  • Material: UL94 V-0 Thermoplastic
  • Operating Temperature: -30°C to +50°C
  • Application: DC EV charging
  • Compatible Vehicles: Electric Vehicles (EVs) and Plug-in Hybrid Electric Vehicles (PHEVs)




  Warranty: 1 year
  Dimensions: 24.3 × 7.1 × 14.4 cm
  Cable Length: 6 m
