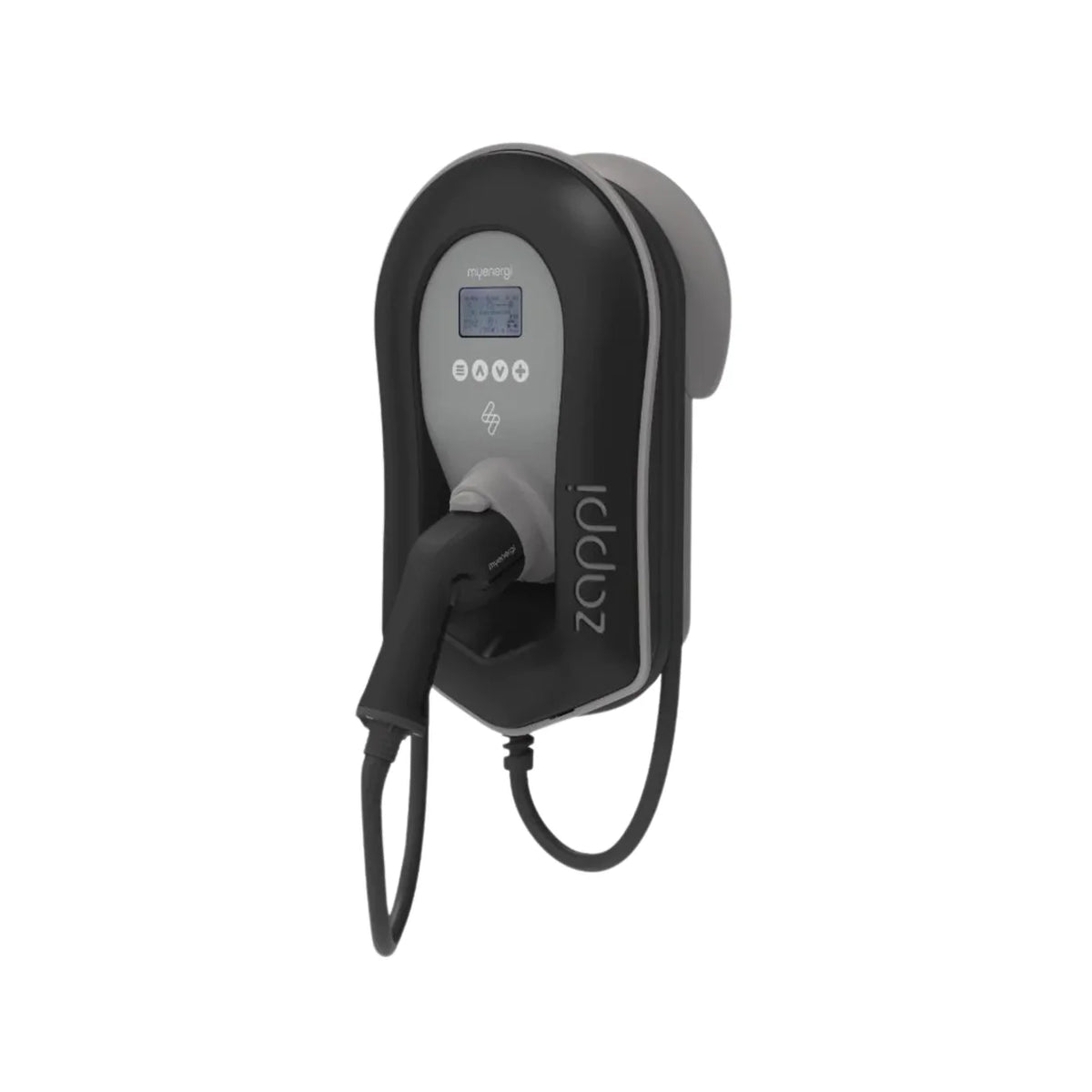

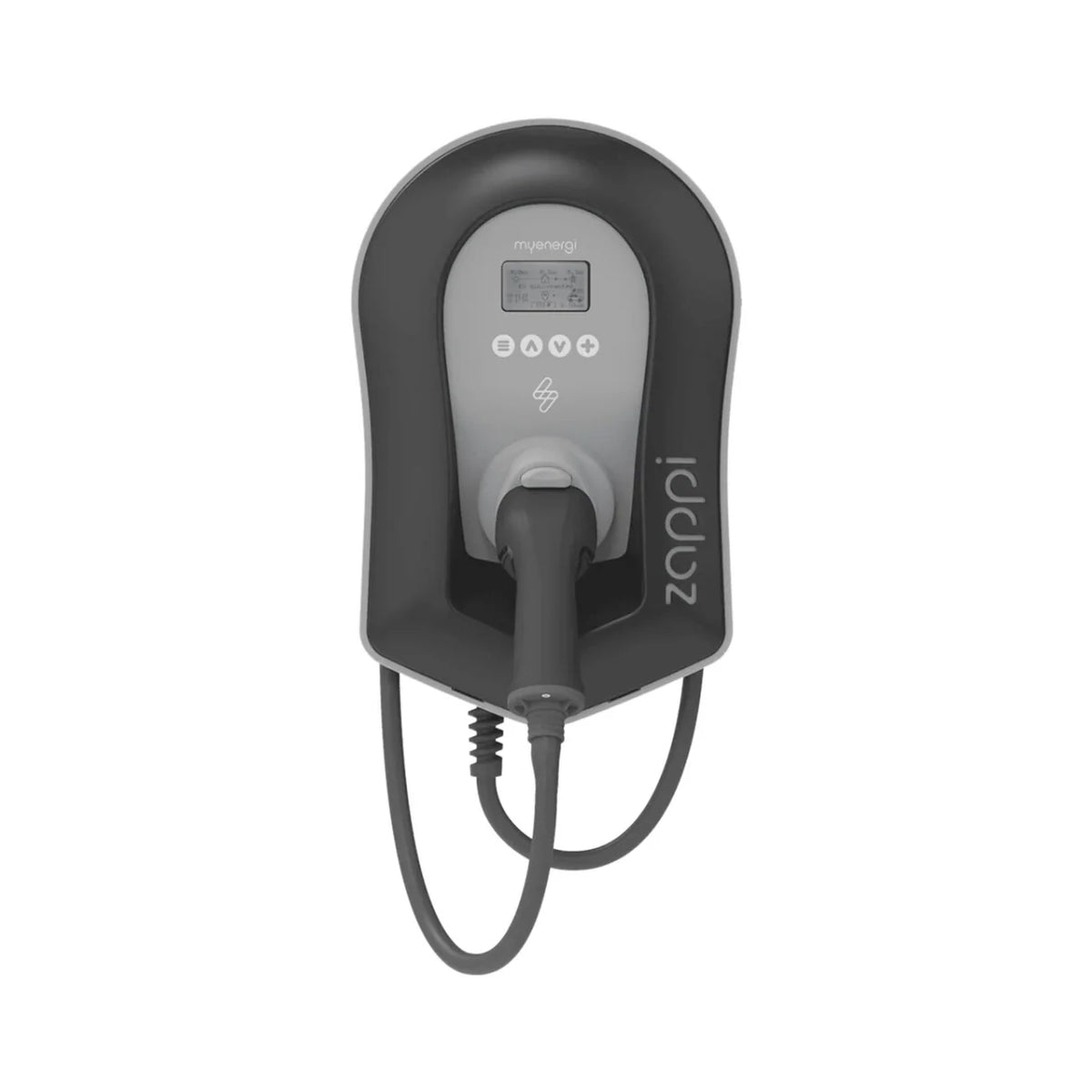

Zappi V2.1 Multiphase 7/22kW Tethered 6.5M-Cable BLACK with inbuilt WiFi/Ethernet w/3 CTs (ZAPPI-2H22TB-T)

The myenergi Zappi V2.1 is a smart multiphase EV charger offering up to 22kW three-phase or 7kW single-phase charging. With a 6.5m tethered Type 2 cable, built-in Wi-Fi and Ethernet, and three CT clamps, it intelligently manages EV charging using available solar energy or grid power.

Key Features

• Up to 22kW three-phase charging
• 7kW single-phase operation
• 6.5m tethered Type 2 cable
• 3 CT clamps included
• Built-in Wi-Fi and Ethernet
• ECO, ECO+ and FAST charging modes
• Dynamic load balancing
• Solar PV surplus charging
• Built-in RCD and 6mA DC protection
• Integrated hub for remote monitoring and updates
• IP65 weatherproof protection
• Suitable for indoor and outdoor installation

Technical Specifications

• Model: ZAPPI-2H22TB-T
• Charging Power: 7kW / 22kW
• Phase: Multiphase – Single & Three Phase
• Supply Voltage: 230V AC / 400V AC ±10%
• Maximum Current: 32A
• Frequency: 50Hz
• Connector: Type 2 Tethered
• Cable Length: 6.5m
• CT Clamps: 3 included
• Connectivity: Wi-Fi 2.4GHz, Ethernet
• Protocol: OCPP 1.6J via cloud
• Protection: 6mA DC residual-current protection
• IP Rating: IP65
• IK Rating: IK10

  Dimensions: 439 × 282 × 122mm
  Warranty: 3 Years
  Cable: 6.5m Type 2 tethered
