EV Charger Tester | Metrel | 1532 XA Adapter

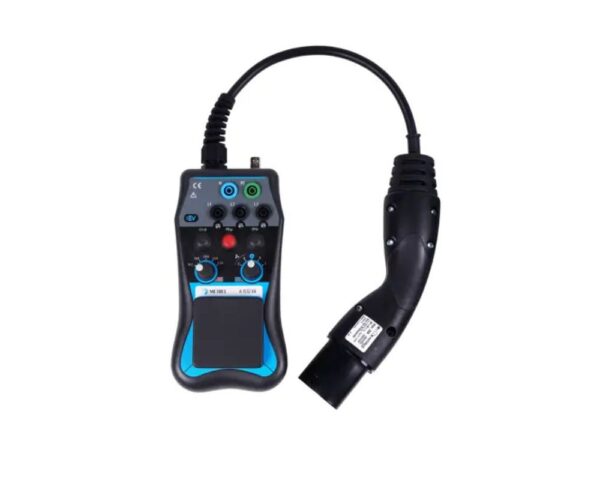

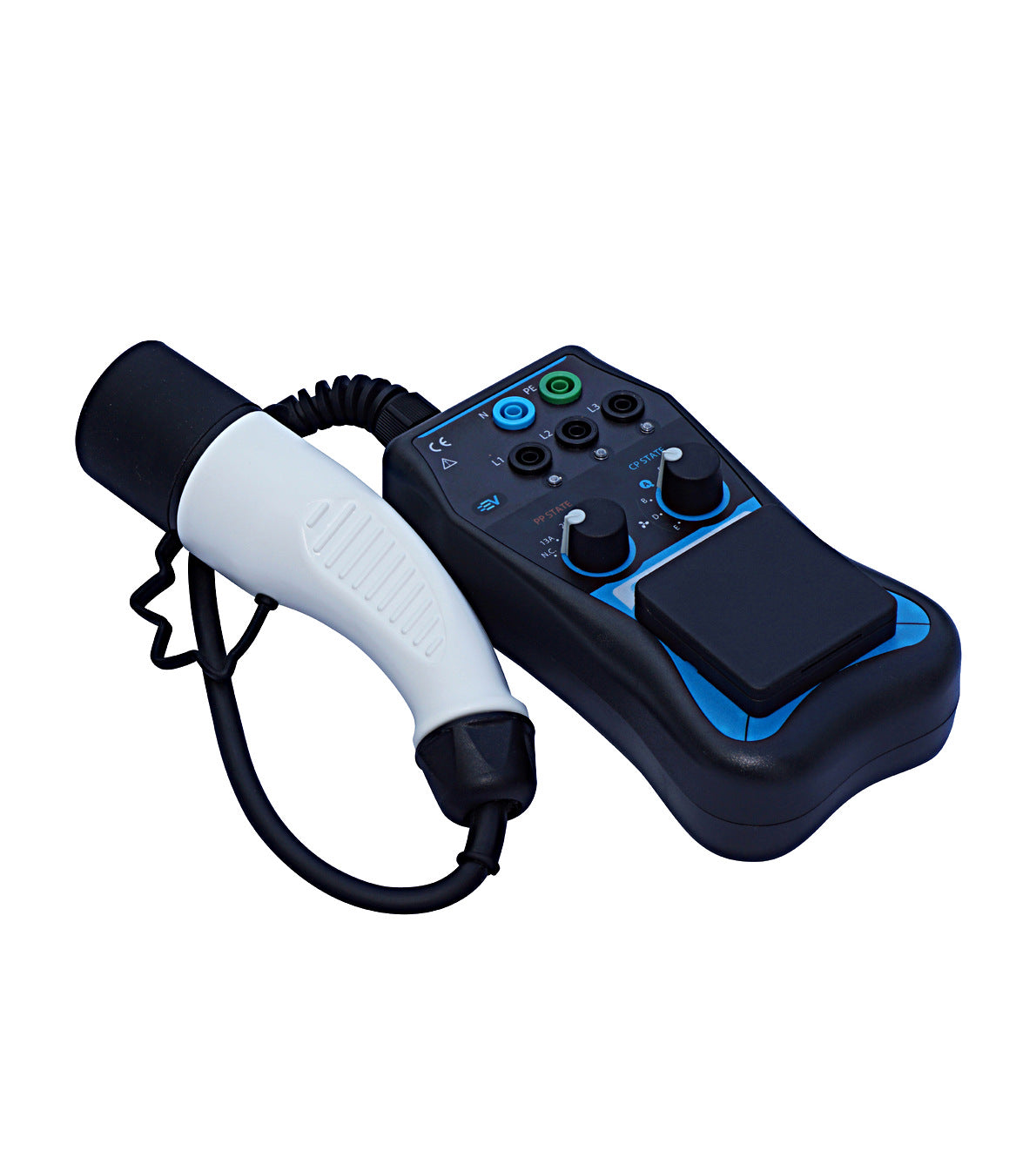

The Metrel A 1532 XA EVSE Adapter is a professional testing accessory designed for electrical safety and functional testing of Mode 3 EV charging stations with Type 2 connectors. It works together with compatible Metrel installation testers, allowing electricians and EV charging technicians to verify the operation and safety of EVSE installations.

The XA version supports three-phase load testing up to 13A and provides simulation of different EV charging conditions and fault states. It is suitable for testing private, semi-private and public EV charging stations, including installations used in commercial and residential environments.

Key Features

• Designed for Mode 3 EV charging station testing
• Compatible with Type 2 EVSE
• Three-phase load testing up to 13A
• Type 2 male plug for connection to the EV charger
• Proximity Pilot (PP) simulation for different cable/current ratings
• Control Pilot (CP) simulation for different EV charging states
• Supports 6mA EV RCD testing
• Fault simulation including PE open, diode short and PE-CP short
• Banana socket outputs for connection to a compatible three-phase installation tester
• BNC output for Control Pilot signal monitoring
• Voltage indicators for checking EVSE output status
• Supports compatible Metrel AUTO SEQUENCE® testing
• Compatible with MESM for professional test reporting

Brand: Metrel

Model: A 1532 XA

Product Type: EVSE Test Adapter

EV Charging Mode: Mode 3

Connector: Type 2

Load Testing: Up to 13A

Phase: Single Phase / Three Phase

Input Voltage: Up to 250V (1-Phase) / 430V (3-Phase)

Frequency: 50/60Hz

Protection Rating: IP40

Dimensions: 200 × 100 × 70 mm

Weight: Approx. 0.9 kg
